CB-CP-GN05-95S-W

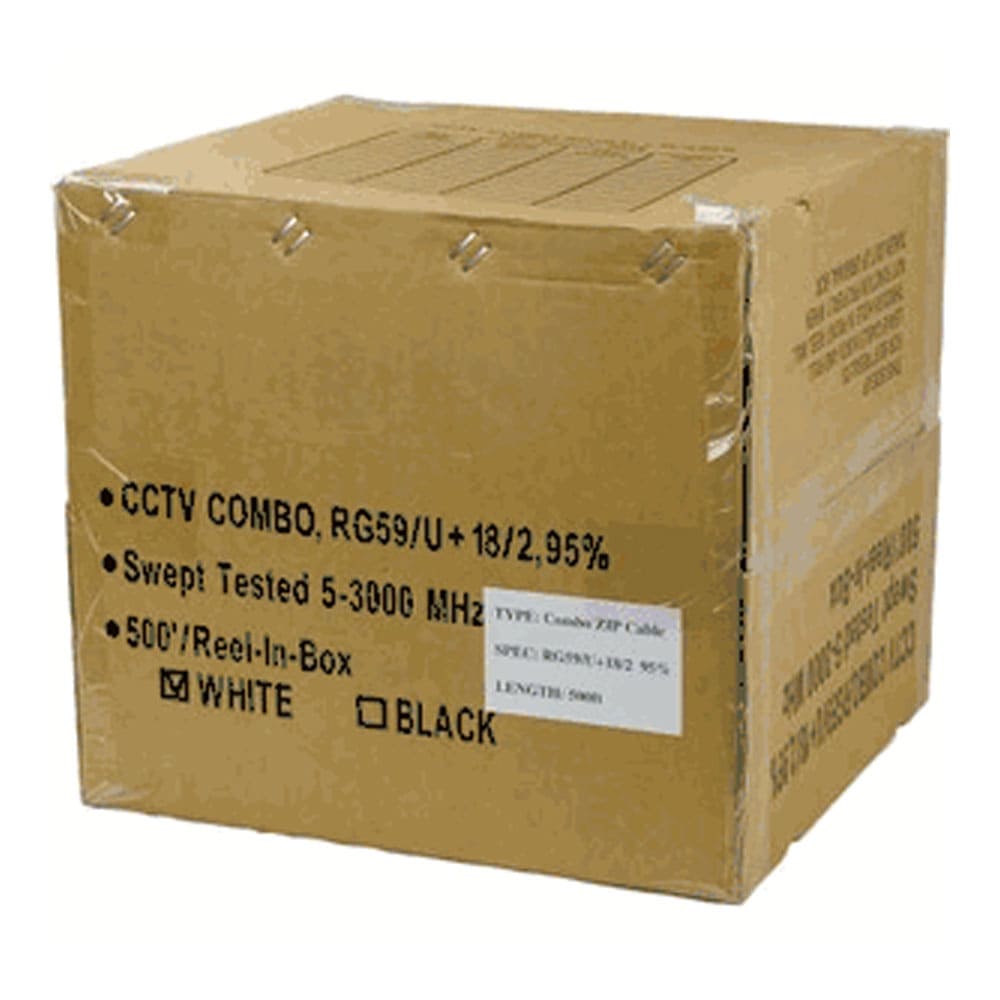

RG59 CCTV Cable - Combo Installer Cable Spool

Ask a Question
Application

RG59/U Coax + 18/2 Power Combo Cable, Split Type, 500ft in Plastic Reel

RG59/U Coax / Bare Copper / 20 AWG • 18 AWG / 2 Conductors / Copper Clad Aluminum (CCA). Copper Clad Aluminum (CCA) Braid 95%. PVC Jacket

Features:

  • RG59 CCTV Cable - Combo Installer Cable
  • Spool of 500 feet
  • Combo Zip Cable
  • Spec: RG59/U+18/2 95%
  • Swept Tested: 5-3000 MHz
  • Color: White

RG59/U Coaxial Component

CONDUCTOR
Material Bare copper
Size 20 AWG
Construction Solid
INSULATION
Material Foamed PE
O.D. .146"
Color cord White
SHIELDS
Braid 95% coverage copper clad aluminum
JACKET
Material PVC
O.D. .236" nom
Color Black or White


Two 18 AWG Conductors

CONDUCTOR
Material copper clad aluminum
Size 18 AWG
Stranding 7/.015
INSULATION
Material HD-PE
O.D. .069"
Color cord black, Red
JACKET
Material PVC, PVC is extruded over coax and pair with web attached
O.D. .196 × .69
OUT JACKET
Material PVC
O.D. .236 × .472
Color Black or White
Markings CCTV COMBO RG59/U+18/2 CL2 BLACK(or WHT) 95% COPPER E348365 Lot#XXXXXXXXX 002FT (004FT….006FT).. 500FT
ELECTRICAL PROPERTIES
Temperature −20°C to 75°C
Capacitance 15.8 pF/Ft. nom
Impedance 75 Ohms nom.
Velocity of Propagation 82% nom.
Dielectric Strength 500 VRMS min.
Max Attenuation 55 MHz -> 1.84 Db/100ft
240MHz -> 3.57Db/100ft
400MHz -> 4.66Db/100ft
600MHz -> 5.75 Db/100ft
800MHz -> 6.71 Db/100ft
PUT=UPS 500ft / Reelex CTN
