GW-231S

Color Genwac Camera with DSP Features - High Quality Japanese CCTV CCD Camera - CLEARANCE

Ask a Question

Genuine Japanese Genwac (Watec) Camera - with Digital Signal Processing!

This hard to find original Genwac camera has been tested and is ready to keep your integrated video solutions running for longer. This specialized camera is ideal for integrators and machine vision projects that need camera setting flexibility and outmost compatibility with machine vision systems and other industrial video applications.

Known as GW-231S and WAT-231S cameras. 1/3" DSP Color Camera boasting professional grade performance. It employs DSP (Digital Signal Processing) and its white balance correction is selectable in accordance with the requirements of your application.

The main characteristics of this security color camera include multi-function design, high sensitivity, and simultaneous output of composite video and Y/C signals.

1/3" GW-231S Color CCD Camera Overview:

  • White balance control
  • Shutter speed control
  • Electronic iris
  • Flickerless mode
  • AGC
  • Back light compensation
  • Gamma correction
  • Video level switch(100 IRE / 75 IRE)

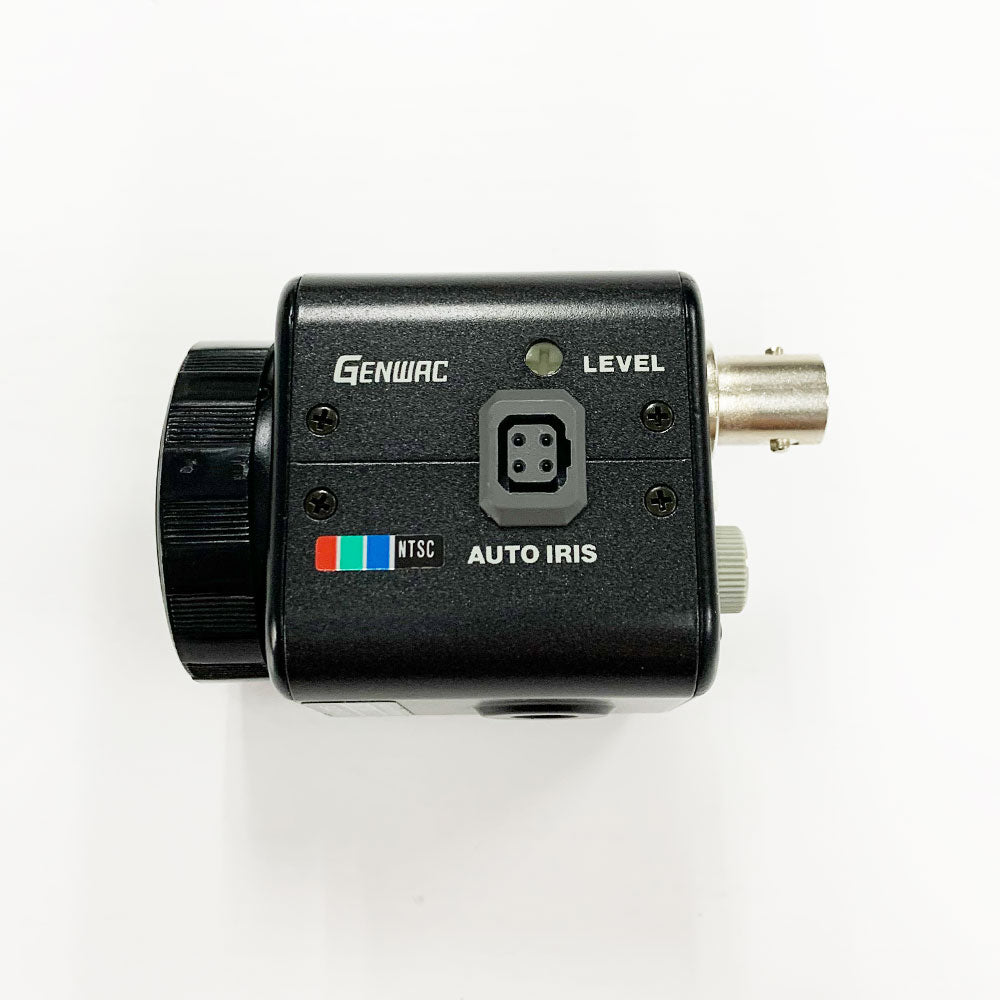

  • Video/DC iris auto-select
  • Iris level control


  • GW-231S CCTV Camera Features:


  • Effective pixels:380k(N), 440k(P)
  • Resolution:450TVL, 480TVL(Y/C)
  • Minimum illumination:0.1 lx. F1.2
  • Gain control: AGC ON(HI:8-36dB, LO:8-24dB), OFF(8dB)
  • Back light compensation: ON/OFF
  • S/N ratio:50dB

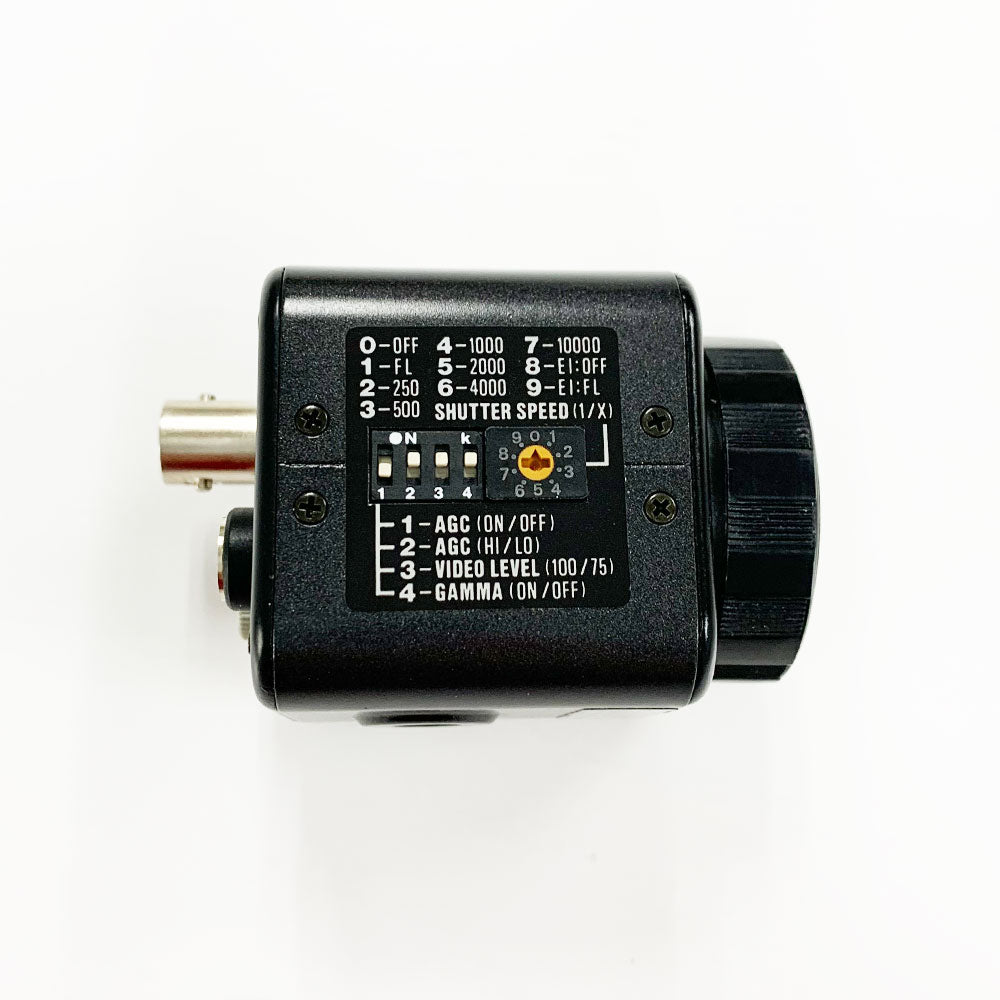

  • Shutter speeds: EI(1/60(N) or 1/50(P)-1/100,000), EI(FL-1/100,000), FL, OFF, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

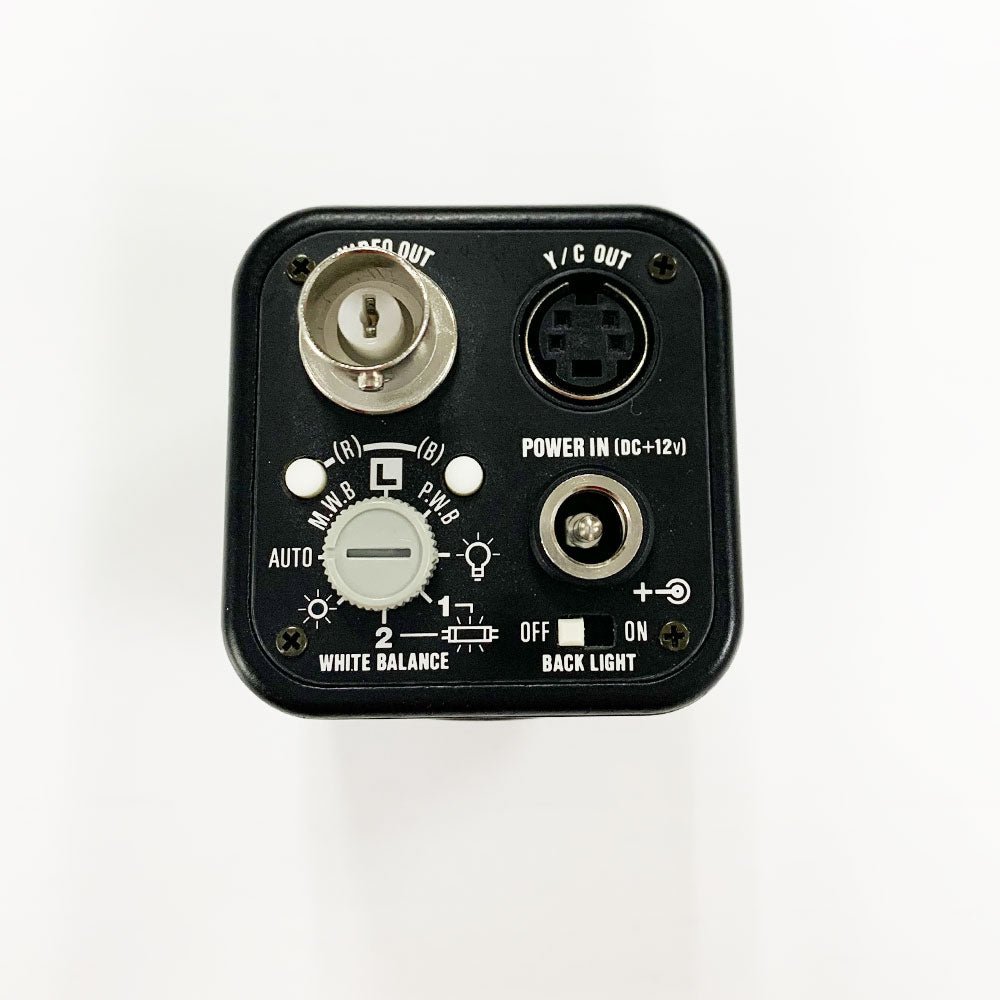

  • White balance: ATW, PWB, MWB, 3200K, 4200K, 5100K, 6300K
  • Weight:160g


  • **Lens and Power supply are not included CCTV-CC-WAT-231S CCTV Color Camera optional accessories: CCTV-A-CN-WPDC12 (DC plug), CCTV-A-CN-AIC (Iris plug), CCTV-A-P-AD901 (Power supply), CCTV-A-MINI (Stand).



    Important Notes:

    This camera is available only in NTSC (USA) format.

    This is a clearance item. Only Used quantities are available for this camera.

    Cameras are sold as is, some cosmetic flaw is possible but not necessarily present on USED cameras as they were previously used for demonstrations. All used items are tested before shipping so you never get DOA units.
