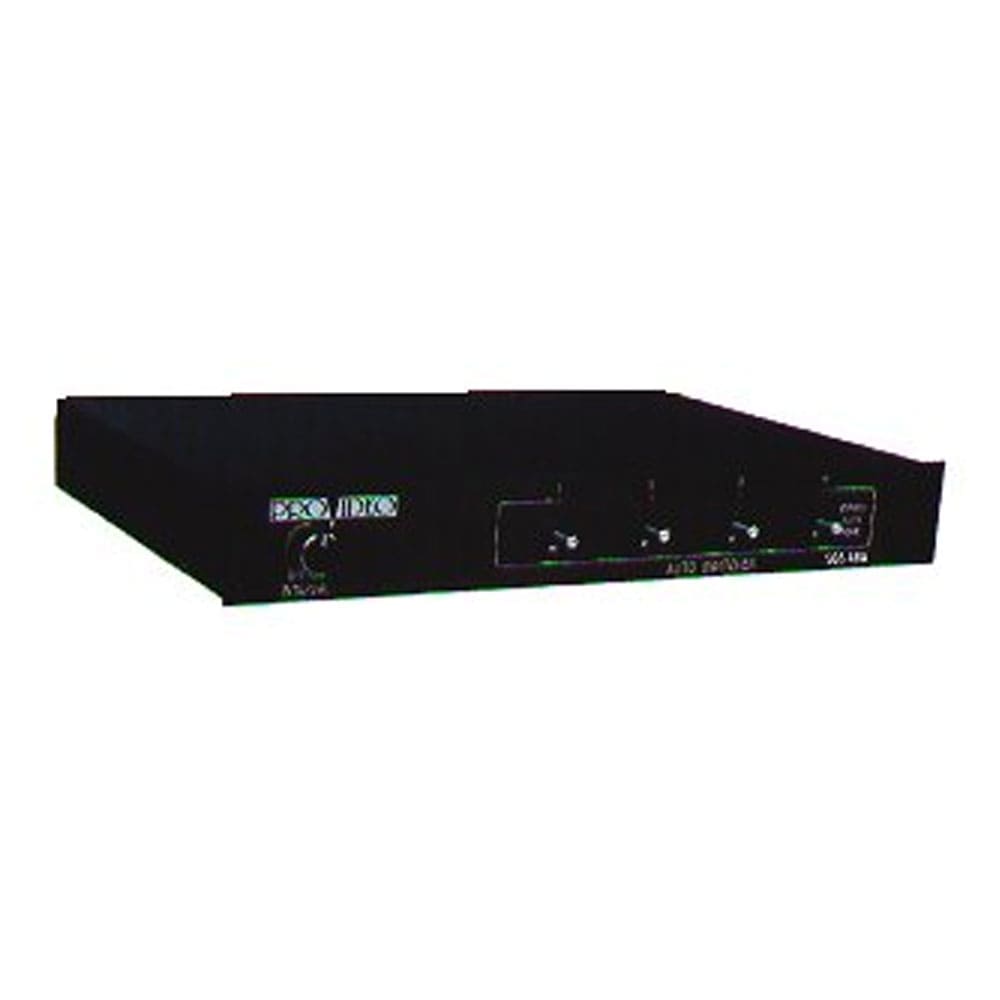

CCTV 4 Position CCTV Camera Switch

Ideal for security workstations and guardhouses. A standard BNC video input allows up to 4 CCTV security cameras to be looped in to manage which camera is viewed when. Two standard BNC vide outputs are included to allow for dual monitor view or monitor and recorder input.

A great way to focus on a most active camera while still being able to switch other cameras with a simple switch.

CCTV Camera Switch Features:

• Video Input: 1.0 Vp-p, 75 OHM, 4 Inputs
• Video Output: 1.0 Vp-p, 75 OHM, 2 outputs
• Video Bandwidth: 20 MHZ +-3bD
• Max Output Gain: 40dB
• Input Voltage: AC 110-120 VAC/60Hz
• Power Consumption: 5 Watts
• Operating Temperature: -10 deg C -+50 deg C or 14 deg F -122 deg F
• Dimensions: 12 1/4" (w) x 1 3/4" (h) x 10" (d)
• Weight: 4 pounds
• Manual switching ONLY
